Looking for help with upgrading your Microsoft Dynamics CRM system? We recently upgraded our Microsoft Dynamics CRM 2015 system to MSCRM 2016. When preparing for the upgrade and during the process we found a lot of disparate information available from Microsoft. I wrote this blog to help others find the most useful information and to share details about the challenges we faced during our upgrade.
Our high-level upgrade plan was as follows:
- Build new servers to house the database and web application
- The initial environment consisted of two servers, both Windows Server 2012, with the database server running SQL Enterprise 2008 R2.
- We kept the two-server model and upgraded both to Windows Server 2012 R2, and the new SQL install was SQL Enterprise 2014.
- Install CRM 2016 on the new servers and test performance

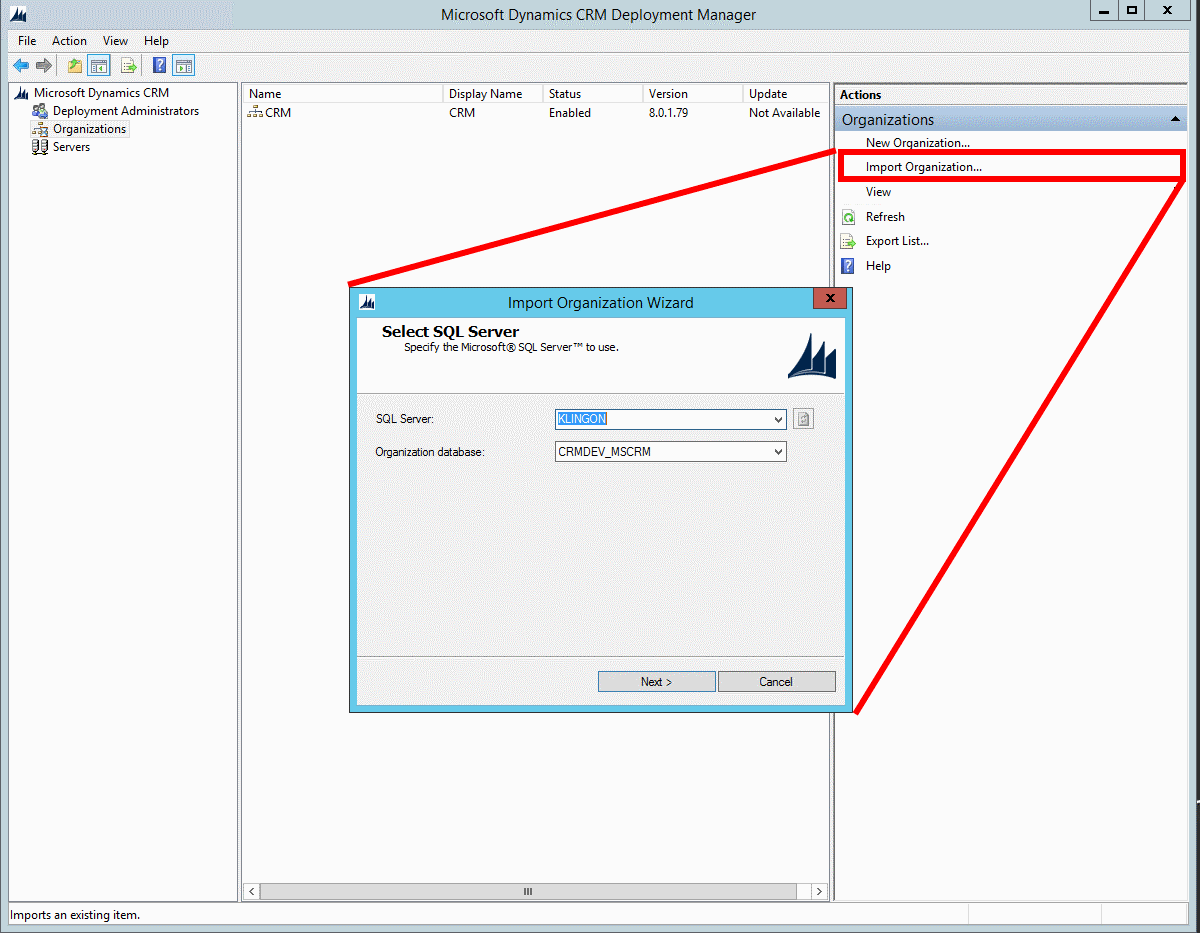

- Migrate (backup and restore) the organization database to the new SQL server
- Upgrade the organization database using the CRM Upgrade Wizard
- Enable Internet Facing Deployment (IFD) and Active Directory Federated Services (ADFS)
Every step except number 5 went extremely well, but we ran into issues when enabling ADFS and the IFD. Originally we wanted to move from ADFS 2.0 to ADFS 3.0, but following a day of troubleshooting and not resolving the problem, we ended up sticking with ADFS 2.0. Additionally, we found that our custom fix for single sign-on with ADFS 2.0 was not possible in 3.0 due to the switch away from using IIS.
Despite the issues that we had with ADFS, the process was fairly simple and we were able to get our new deployment up and running over a weekend. Had we not tried to upgrade to ADFS 3.0 we would have been ready in a matter of hours. There were a few small hiccups here and there along the way, but hopefully the information below will help you sail through your own upgrade.
Setting Up Servers
We followed Microsoft's most recommended path to set up a new application and database server for our 2016 install. The following table shows Microsoft's recommendations for hardware, along with our own setup; we have not seen any performance issues ourselves.
|
Component (CRM Server) |
Microsoft Minimum |
Microsoft Recommended(source) |
DMC Server |
|---|---|---|---|
|
Processor |
x64 architecture or compatible dual-core 1.5 GHz processor |
Quad-core x64 architecture 2 GHz CPU or higher such as AMD Opteron or Intel Xeon systems |
Intel Xeon CPU E5-2660 v3 @ 2.6GHz |
|
Memory |
4-GB RAM |
8-GB RAM or more |
8-GB RAM |
|
Hard disk |
10 GB of available hard disk space |
40 GB or more of available hard disk space |
60 GB of available hard disk space |
|
Component (SQL Server) |
Microsoft Minimum |
Microsoft Recommended(source) |
DMC Server |
|---|---|---|---|
|
Processor |
x64 architecture or compatible dual-core 1.5 GHz processor |
Quad-core x64 architecture 2 GHz CPU or higher such as AMD Opteron or Intel Xeon systems |
Intel Xeon CPU E5-2660 v3 @ 2.6GHz |
|
Memory |
4-GB RAM |
16-GB RAM or more |
32-GB RAM |
|
Hard disk |
SAS RAID 5 or RAID 10 hard disk array |
SAS RAID 5 or RAID 10 hard disk array |
SAS RAID 5 |
Setting up these servers was fairly straightforward, and we followed the Microsoft TechNet article on CRM 2016 Software Requirements to drive our decisions on which additional programs to install. Basically, all we had to do outside of the pure defaults was to turn on IIS on the application server.
Installing CRM 2016

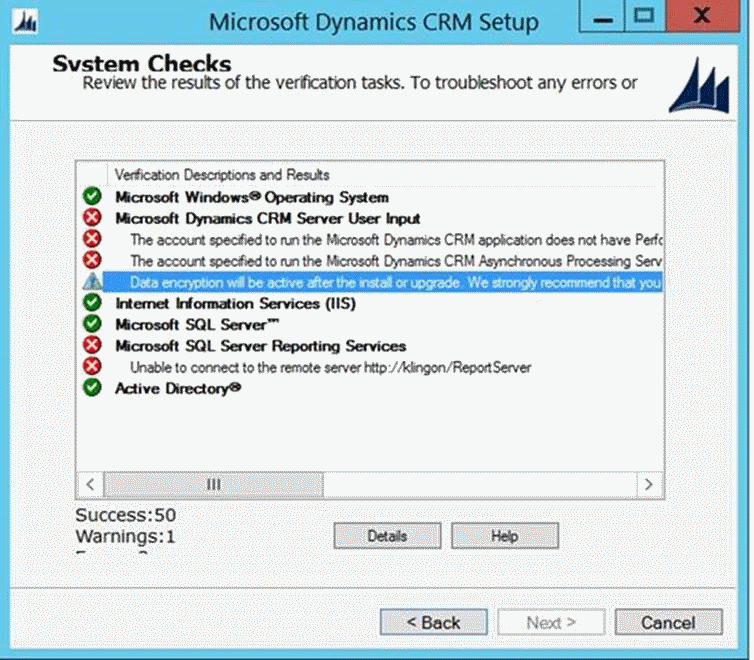

Once the servers were ready to go, we moved the CRM 2016 installation executable to the application server and ran the installer. The first hiccup we ran into was some errors with permissions: "The account specified to run the Microsoft Dynamics CRM application does not have Performance Counter permissions."
This occurred because the CRM setup does not give all of the appropriate permissions to the accounts that you specify during the initial steps. Finding the required levels was a little tedious (as you can see yourself at this TechNet article), so I made the below table to help determine what kind of authorization each account needed to which parts of the system. The yellow columns are permissions that could not be added before setup completed, and were added by the setup itself (despite the fact that Microsoft specified them as required).
|
|
Domain Users membership |
Logon as service |
Trace Folder |
CRMWeb Folder |
CustomizationImport Folder |
%AppData% Folder |
HKEY_LOCAL_MACHINE |
HKEY_LOCAL_MACHINE |
SETSPN |
PrivUserGroup |
SQLAccessGroup |
Performance |
CRM_WPG |
SQLAccessGroup |
Sysadmin on SQL Server |
Local admin on FE |
Local admin on Deployment Web Service |
Local admin on SQL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Microsoft Dynamics CRM Sandbox Processing Service |
Yes |
Yes |
R/W |
|
|
R/W |
Read |
|
Yes |
|
|
|
|
|
|
|
|
|
|
Microsoft Dynamics CRM Asynchronous Processing Service and Microsoft Dynamics CRM Asynchronous Processing Service (maintenance) services |
Yes |
Yes |
R/W |
|
R/W |
R/W |
All access permissions except Full Control and Write DAC |
All access permissions except Full Control and Write DAC |
Yes |
Yes |
Yes |
Yes |
|
|
|
|
|
|
|
Microsoft Dynamics CRM Monitoring Service |
Yes |
Yes |
|
|
|
|
Read |
|
Yes |
|
Added by setup |
|
|
Yes |
|
Yes |
|
|
|
Microsoft Dynamics CRM VSS Writer service |
Yes |
Yes |
|
|
|
|
Read |
|
|
Yes |
Yes |
|
|
|
|
|
|
|
|
Deployment Web Service (CRMDeploymentServiceAppPool Application Pool identity) |
Yes |
Yes |
R/W |
R/W |
|
R/W |
All access permissions except Full Control and Write DAC |
All access permissions except Full Control and Write DAC |
Yes |
Yes |
Yes |
|
Yes |
|
Yes |
|
Yes |
Yes |
|
Application Service (CRMAppPool IIS Application Pool identity) |
Yes |
|
R/W |
R/W |
|
R/W |
All access permissions except Full Control and Write DAC |
All access permissions except Full Control and Write DAC |
Yes |
Added by setup |
Added by setup |
Yes |
Yes |
|
|
|
|
|
